Polymerase Chain Reaction (PCR)
Definition of PCR :
This technique enables the large-scale amplification of a specific DNA or RNA sequence from a very small initial quantity of nucleic acid. Starting from only a few picograms of genetic material, the target sequence can be replicated exponentially, reaching amplification levels of up to approximately one billion copies.
Principle of PCR :
The principle of Polymerase Chain Reaction (PCR) is based on a series of repeated replication reactions of a double-stranded DNA template. These reactions occur in cyclic phases, each consisting of three distinct temperature steps.Each temperature step corresponds to a specific biochemical reaction involved in the DNA amplification process.The key concept of PCR is that the newly synthesized DNA fragments produced in each cycle serve as templates for the following cycles, rather than separating them and reusing only the original template. As a result, DNA amplification proceeds exponentially rather than linearly.Typically, a PCR experiment consists of approximately 20 to 40 cycles, with each cycle comprising three main steps.
Steps of PCR
To achieve the replication of double-stranded DNA, the process proceeds through three essential steps:
1. Denaturation: The double-stranded DNA is heated to separate the two strands, producing single-stranded DNA templates.
2. Primer Annealing: Specific oligonucleotide primers bind to complementary sequences flanking the target region, thereby defining the boundaries of the sequence to be amplified and initiating replication.
3. Extension (Polymerization): A DNA polymerase enzyme synthesizes the complementary DNA strand by extending from the primers using the single-stranded DNA templates.
PCR Temperatures
PCR steps are performed at different temperatures to regulate enzymatic activity during the amplification process.
– Denaturation: This step occurs at approximately 95 °C, where the double-stranded DNA is separated into two single strands.
– Annealing (Hybridization): The primers bind to their complementary sequences at a temperature determined by the characteristics of the primers. This temperature typically ranges between 50 °C and 60 °C.
– Extension (Polymerization): DNA synthesis takes place at approximately 72 °C, which corresponds to the optimal working temperature of the thermostable DNA polymerase used in PCR.
- The denaturation and extension temperatures are generally constant, while the annealing temperature must be specifically calculated for each PCR reaction.
- This annealing temperature mainly depends on the base composition and sequence characteristics of the oligonucleotide primers.
PCR Conditions and Parameters
- Primers:
The selection of primers is a critical factor in PCR. They perform two essential functions.First, by hybridizing to the template DNA, primers define the boundaries of the DNA region to be amplified. Second, their free 3′-OH end provides the starting point required for DNA polymerase to initiate DNA synthesis during the extension step of the PCR cycle.Primers are produced through chemical DNA synthesis, which generates short DNA fragments known as oligonucleotides. Unlike naturally occurring DNA molecules, these synthetic oligonucleotides typically possess a non-phosphorylated 5′ end (5′-OH). - Deoxyribonucleotide triphosphates (dNTPs):
Are the fundamental building blocks of DNA. These molecules ( dATP, dCTP, dGTP, and dTTP) are incorporated by DNA polymerase (such as Taq polymerase) during the synthesis of a new DNA strand.
During PCR, dNTPs are used as substrates for the enzymatic polymerization reaction, enabling the formation of the complementary DNA strand based on the template sequence.
- Template DNA :
Template DNA refers to the DNA sample used as the starting material for PCR amplification. Before the PCR reaction, DNA must first be extracted from the biological sample intended for analysis, such as saliva, hair, cells, or even fossil material.After extraction and purification, the DNA sample containing the target sequence to be amplified is introduced into the PCR reaction mixture.In theory, a single copy of the target DNA sequence is sufficient to initiate amplification. However, in practical applications, multiple copies are generally required to obtain reliable and detectable results.It is also important to note that poor DNA quality or an excessive amount of template DNA may lead to non-specific amplification, which can compromise the accuracy of the PCR results.
- Thermocycler :
To perform the successive temperature changes required during PCR, the microtubes containing the reaction mixture are placed in a programmable device called a thermocycler.This instrument allows the samples to be exposed to precisely controlled temperatures for specific time intervals defined by the experimenter.The thermocycler automatically repeats these temperature cycles, enabling the sequential steps of denaturation, primer annealing, and DNA extension.PCR is a relatively rapid technique, and the entire reaction typically takes a few hours to complete, usually about 2 to 3 hours for a PCR consisting of approximately 30 cycles.
Let’s Explore It Step By Step !
- Denaturation
During the denaturation step, the temperature in the reaction tube is raised to approximately 95 °C.At this temperature, the weak hydrogen bonds that maintain the stability of the DNA double helix are disrupted. As a result, the two DNA strands separate, producing single-stranded DNA molecules that can serve as templates for the subsequent steps of the PCR process.

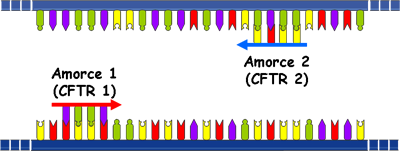

- Hybridization (Annealing)
During the annealing step, the temperature of the reaction mixture is lowered to the annealing temperature, typically between 50 °C and 60 °C. This temperature is determined based on the nucleotide composition (dATP, dTTP, dGTP, and dCTP) of the primers.
At this stage, the primers recognize and bind to their complementary sequences on the single-stranded DNA templates, forming hydrogen bonds and providing starting points for DNA synthesis in the next step.

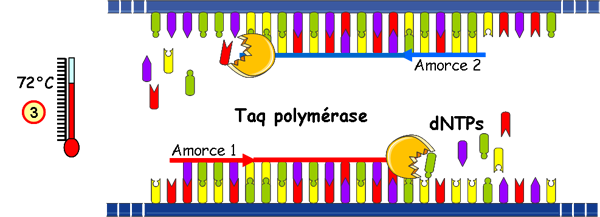

- Extension (Elongation)
During the extension step, the temperature is set to approximately 72 °C, which is optimal for the activity of Taq DNA polymerase.The hybridized primers serve as starting points for the synthesis of the complementary DNA strand along the template. DNA polymerase adds deoxyribonucleotides (dNTPs) sequentially, with each nucleotide being complementary to the corresponding base on the template strand.It is important to note that DNA polymerization does not automatically stop when the desired fragment length is reached. As a result, the newly synthesized DNA strands can sometimes be slightly longer than the target sequence.
Applications of PCR
PCR is widely used across numerous fields due to its versatility:
PCR is essential for fundamental research and routine laboratory applications, including various educational and biotechnological contexts.
2. Medicine:
PCR is used for the diagnosis of genetic disorders such as myopathies or cystic fibrosis, as well as for infectious disease detection, including viral infections (HIV, Hepatitis C, SARS, coronavirus), bacterial infections (tuberculosis), and parasitic infections (toxoplasmosis).
PCR also enables the detection of genetic mutations associated with cancer and other conditions.
3. Forensic Science:
PCR is applied to identify individuals based on their genetic fingerprint in criminal investigations and for paternity testing.
4. Agriculture and Food Industry:
PCR is used to identify plant and animal species or varieties, and to select new varieties of fruits and vegetables, such as tomatoes.
It also enables quality control in food products, for example, by detecting the presence of GMOs in foods.
5. Historical and Archaeological Research:
PCR allows phylogenetic studies on fossilized skeletons (ancient DNA) to investigate kinship relationships between individuals.
It is also applied to study human and animal population migrations, for instance, in Iceland or among Native American populations.
Additionally, PCR can detect viral, bacterial, and parasitic infections in ancient remains, such as Egyptian and Andean mummies. For example, H-C Li and colleagues demonstrated the presence of the HTLV-1 virus, associated with AIDS, in Andean mummies over 1500 years old.
Advantages and Disadvantages of PCR
– Can amplify very small amounts of biological material (high sensitivity).
– Can work with degraded DNA samples.
– Can discriminate between different target sequences (high specificity).
– Rapid and efficient.
– Enables detailed analysis of DNA sequences.
– Risk of contamination, which can lead to false results.
– Presence of inhibitors in the sample can interfere with the PCR reaction.
